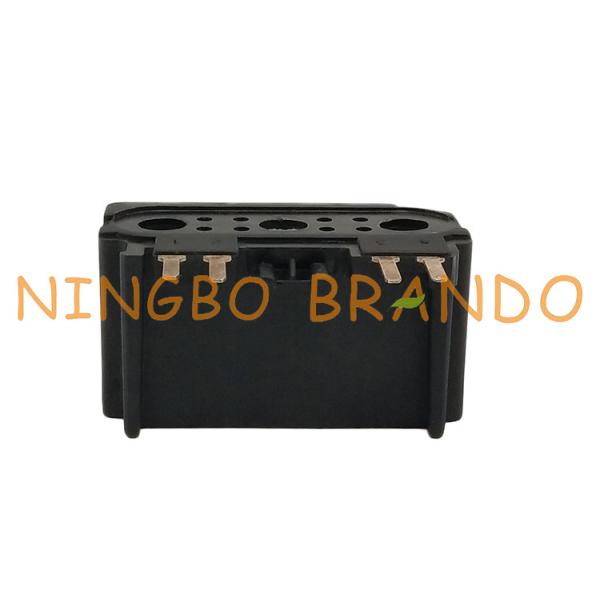

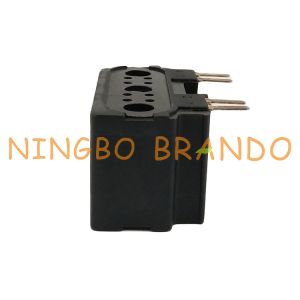

9.0mm Automobile Electromagnetic Solenoid Coil S-KLASSE DC24V 37W
Automobile Spare Part
Car Fitment:Mercedes-Benz
Model:S-KLASSE COUPE
Year:2017-2019
Brand Name:Brando
Place of Origin:Zhejiang, China
Hole Size:9.0mm
Height:36.0mm
Width:69.0mm
Voltage:DC24V
Power:37Wx3
Connector:2.8mmx0.8mm
Insulation class:H
Protection class:IP65, IP67, IP68
Application:Automobile Part
Dimension of BB09036005 Solenoid Valve Coil :
Technical Data:
Model | |
Hole Size | |
Height | |
Width | |
Connector | |
Insulation Class | |
Protection Class | |
Normal Voltage | |
Power | |
Details:
 |  |  |
| Hole Size 9.0mm | Height 36.0mm | Width 69.0mm |
Solenoid Coil Production Line:
Attention:
1. This air suspension compressor pump solenoid coil is made of
high quality components.
2. Replaces the original air compressor solenoid coil of your car
and equal the original quality.
3. Please double confirm the compatibility as well as the OEM
number before purchasing.
4. Instruction is not included. Professional installation is
recommended.
Steps and methods for properly installing a solenoid valve coil:
1. Check if the solenoid valve and the selected parameters are the
same, such as differential pressure, etc. If the error occurs, the
solenoid valve coil will be burned out. Voltage fluctuations should
be within the normal range and meet the rated voltage.
2. Before connecting the pipeline, flush the pipeline and remove
the residual dirt in the pipeline. If there are residual stains, it
will affect the normal use of the solenoid valve. To prevent this,
a filter should be installed in the pipeline.
3. Install the solenoid valve coil of the solenoid valve vertically
on the horizontal and ground pipes. If there is a special
situation, it cannot be installed vertically. The appropriate
solenoid valve should be ordered in advance, otherwise the solenoid
valve will not work properly.
4. When installing, add a safety process and install a manual
cutting valve to facilitate maintenance in case of failure.
5. Pay attention to the direction when installing, can not be
reversed, installed in the direction indicated on the package, and
can be reversed in some special cases such as vacuum.
6. If the water may be damaged by the medium, you must take
appropriate protective measures or choose a solenoid valve with a
waterproof hammer function.
7. The solenoid valve cannot be energized all the time, otherwise
it will reduce its life. Note that normally open, normally closed
solenoid valves cannot be used with care.
Product Features:
1. Using high quality wire which has UL approved; 2. Using high
quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and
so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof
coils and so on.
7. If you have special requirement, pls feel free to contact us.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
