Goyen Type 1-1/2'' Diaphragm Pneumatic Pulse Valve With Dresser Nut
For Baghouse Cleaning System
CA45DD goyen type DD series electrimagentic pulse valve with
dresser nut. According to working voltage, you can choose AC or DC
solenoid coil. According to the working temperature and fluid
viscosity , choose the material of seals and diaphragm. According
to the working environment , choose the body material (common ,
corrosion resistance or Waterproof and etc).
Youtube Video of CA45DD 1-1/2'' Diaphragm Pulse Valve With Dresser
Nut:
Construction:
Body: Diecast aluminum
Ferrule: 305 SS
Armature: 430FR SS
Seals: Nirtrile or FKM
Spring: 304 SS
Screws: 302 or 304 SS
Outlet Slide Seal: EPDM or FKM
Diaphragm Seat: PA-66(standard). FKM coated mild steel
Technical Data:
| Model No. | CA45DD |
| Poet Size | G1-1/2'' |
| Number of Diaphragm | 2 |
| Connection Type | Right Angle with Dresser Nut |
| Action Type | Pilot Operated |
| Media | Air |
| Pressure | 0.3~0.8Mpa |
| Temperature | -5~+55℃ |
| Voltage | AC220V, AC110V, AC24V, DC24V |
| Special voltages and special specifications, please contant us. |

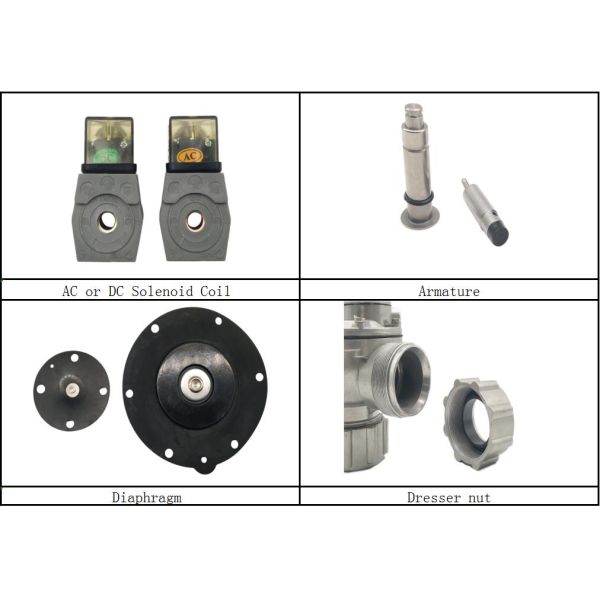

Details About CA45DD Solenoid Pulse Valve:
Main Part of CA45DD electromagnetic pulse valve:
Solenoid Coil
Solenoid is the generic term for a coil of wire used as an
electromagnet. It also refers to any device that converts
electrical energy to mechanical energy using a solenoid. The device
creates a magnetic field from electric current and uses the
magnetic field to create linear motion. Common applications of
solenoids are to power a switch, like the starter in an automobile,
or a valve, such as in a sprinkler system.
Armature
An armature assembly for a solenoid valve allows for a valve member
to be retained in the closed position through a biasing force being
applied therein. A moveably supported armature bolt is movable
between a first position and a second position. A valve member is
coupled to the armature bolt and is configured to close with the
armature bolt at the second position. An armature body is coupled
to the armature bolt. A resilient member adapted to hold the
armature bolt at the second position so as to retain the valve
member in the closed position.
Diaphragm
The purpose of a diaphragm in a diaphragm type solenoid valve is to
control the air within a certain space. These control valves can
also be either open or closed, depending on the movement of the
magnetic core.
Main Body
1.Different body material can be used in different working
environment.
2.Different Connection Type can be used in different place,
suitable for different installation way.
Maintenance Kits:
| Model | Nitrile | FKM | Low Temperature–60°C (–76°F) MIN. | Includes |
| CA/RCA25DD | K4502 | K4503 | K4522 | Diaphragm kits include main and secondary diaphragms and all spring |
| K4510 | K4511 | NA | 2 dresser seals, 2 dresser nuts, 2 seal retainers |
| K0380 | K0384 | NA | o-ring, armature assembly, armature spring, ferrule |
