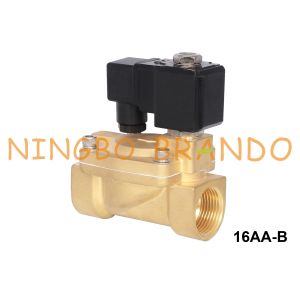

1'' PTFE Diaphragm Operated Brass Solenoid Valve 24VDC 220VAC

Product Features of Solenoid Valve:

1. Working Medium: Air, Hot Water, Steam, Ammonia, Oil etc.
2. Working Pressure Range: 0.3 to 16 bar (See the parameter table below for details)
3. Medium Temperature Range: PTFE (-30 to +200℃)
4. Port Size: 3/8'', 1/2'', 3/4'', 1''
5. Orifice Size: 12mm, 15mm, 20mm, 25mm
6. Body Material: Brass, Stainless Steel
7. Diaphragm Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Diaphragm Pilot Operated
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Solenoid Valve:

Main Dimension of Solenoid Valve:

Brando Factory Production of Solenoid Valves:

More Steam Solenoid Valves for you to choose:

Brass Solenoid Valves

Stainless Steel Solenoid Valves

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
