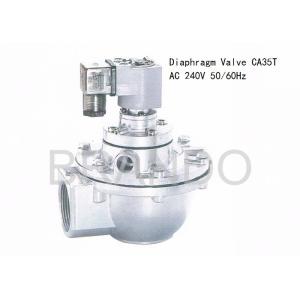

Filtration Solutions Parts Diaphragm Pneumatic Pulse Valve CA35T
RCA35T
The diaphragm pulse valve BGZ35, similar as CA35T type, is
specially designed for cleaning dust, with high performance of
cleaning ability. The diaphragm valve is made of copper wiring
solenoid coil, USA original 430FR armature assemblies, and precison
machined die casting ADC12 alimininum. We highly welcome customer
to send us enquiry, and we also can produce as your drawing.
Our pulse jet valve is suitable for:
Dust collector applications, in particular for reverse pulse jet
filter cleaning and its variations including bag filters, cartridge
filters and envelope filters.
Features of 1 1/4" Diaphragm Pulse Jet Valve:
1, Class leading performance coupled with extremely rapid response
2, Cleans more filter area per valve than before
3, NO spring failures
4, 1 MILLION CYCLES guaranteed
5, Proprietary engineering thermoplastic elastomer blend for
consistent performance throughout the temperature and pressure
range
6, Environmentally endurance tested at the extremes
Air Clean System Diaphragm Pulse Jet Valve Construction:
| Number | Part Name | Material |
| 1 | Solenoid coil | Copper wire |
| 2 | Armature aseembly | 430FR SS |
| 3 | Small top cap | Alumininum, ADC |
| 4 | Middle cap | Alumininum, ADC |
| 5 | Small spring | 304 SS |
| 6 | Diaphragm seat | PA-66(standard), Viton or Nitrile coated mild steels, Nitrile,
Viton or High Density PE |
| 7 | Top cap | Alumininum, ADC |
| 8 | Big spring | 304 SS |
| 9 | Bolts and Screws | 302 or 304 SS |
| 10 | Diaphragm seat | PA-66(standard), Viton or Nitrile coated mild steels, Nitrile,
Viton or High Density PE |
| 11 | Valve body | Alumininum, ADC |
Pulse Jet Valve Maintenance:
Before conducting any maintenance activity on the system ensure
that components are fully isolated from pressure and power
supplies. Pressure and power should not be reapplied until the
valve has been fully assembled.
Diaphragm and pilot inspection should be conducted annually.
Detailes of G1 1/4" Nominal Port Size Diaphragm Pulse Jet Valve and
It's Overall Dimensions:
Half Inch Port Size Pulse Jet Valve Technical Parameters:
| Part No. | BGZ35 |
| Operating pressure | 0.3~0.8MPa |
| Ambient temperature | -5~55℃ |
| Relative humidity | ＜85% |
| Fluid | Clean air |
| Voltage | AC110V, AC220V, DC24V |
| Electric current | 0.46A, 0.23A, 0.8A +-10% |
| Diaphragm life | More than 1 milion cycles |
| Orifice Diameter | φ 35mm |
| Nominal Port Size | G1 1/4" |
Pulse Valve Characteriestic And Performance
| Part No. | Nominal Port Size (mm) | Nominal Port Size (Inch) | Number of Diaphragms | Flow (Kv) | Flow (Cv) |
| BGZ15 | 15 | 1/2" | 1 | 2.5 | 2.9 |
| BGZ20 | 20 | 3/4" | 1 | 12 | 14 |
| BGZ25 | 25 | 1" | 1 | 20 | 23 |
| BGZ35 | 35 | 1 1/4" | 1 | 36 | 42 |
| BGZ45 | 40 | 1 1/2" | 2 | 44 | 51 |
| BGZ50 | 50 | 2" | 2 | 91 | 106 |
| BGZ62 | 62 | 2 1/2" | 2 | 117 | 136 |
| BGZ76 | 76 | 3" | 2 | 144 | 167 |
Pulse Jet Valve Installation:
1, Prepare supply and blowtube pipes to suit valve specification.
Avoid installing valves underneath the tank.
2, Ensure tank and pipes are free from dirt, rust or other
particulate.
3, Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no
excess thread sealant can enter the valve itself.
5, Apply moderate pressure to system and check for installation
leaks.
6, Fully pressurise system.
7, Test fire and listen for proper actuation and crisp pulse noise.
We Alse Sell Solenoid Coil and Armature Assembly, Welcome Your
Enquiry:
Welcome your any question, we will response at once.
Pls contact us: brandon.bao@brandopneumatic.com
