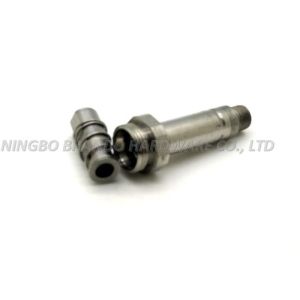

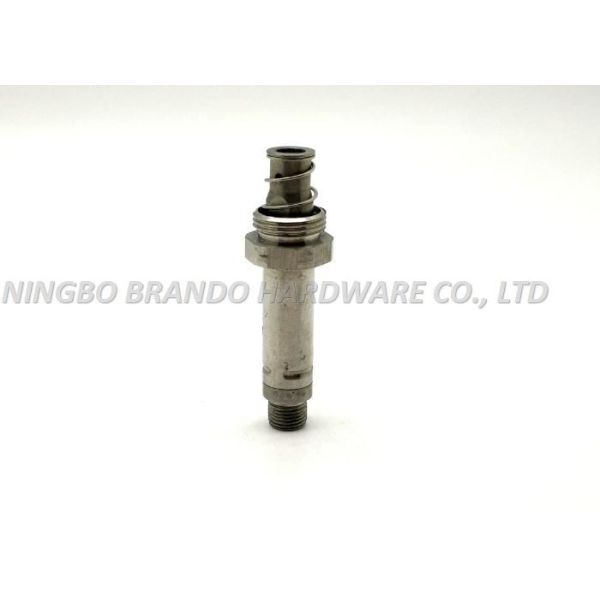

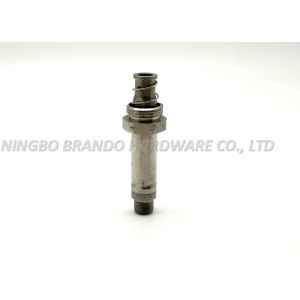

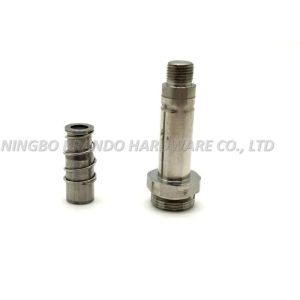

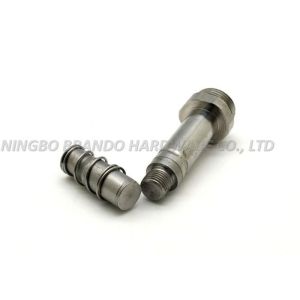

2/2 Way Male Thread Connection,High Precision Solenoid Stem With External Spring

Specification For detail information

1.Brand:BRANDO

2.NO,:BAPC210029002

3.Tube out diameter:10.0mm

4.Tube height:29.0mm

5.Item weight:29.5g

6.Upper Thread height:5.3mm

7.Movable core height:24mm

8. Solenoid armature height:44.5mm

9.Depth:24mm

10.Voltage:Both AC/DC

11.Material:stainless steel SS304 and NBR

12.Component:armature tube,plunger and external spring,O-Ring seal,Embed NBR

13.Standard or no:standard

14.Connection type:Thread

15,Application:mainly used for Pneumatic solenoid valve

Solenoid valve application

1.Dental equipment

2.Dust collector device

3.Automatic vending machine

4.Pulse device

5.Pneumatic equipment

6.Auto drain industry

7.Air suspension

8.Refrigeration device

9.Hyraulic industry

10.Life water and industry water supply

11.Air condition device

12.Pipe switch

13.Evr:Electronic Video Recorder

14.Chemical industry

Item instruction

1. 2 way 2 way normally closed solenoid stem,Can assemble with solenoid coil.2 way 2 way normally closed types of valves work best for smaller flow rate. One of the benefits to using these is that they only need to use full power when opening the valve. Once the valve is open, these valves can hold the open position even when operating on low power.

Product supply catalog

Transportation and delivery

1.By air,by sea,by express are all in available

2.The lead time:3-8 work days or faster,if we have stock

3.We'll tell you the tracking number once your order has been sent

4.Products with plastic covered, Packaged in plastic bag, Plastic bags in carton boxes, Carbon boxes on wooden cases or wooden pallet with Iron belt or as per customers' request.For the largest possible protection.

5.If you any other problems and questions,please contact with us to negotiate the delivery detail

Related Movable core/solenoid stem

We have more than 10 years experience in manufacturing solenoid stem. Excellent quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products of solenoid armature assembly are being exported all over the world. We provide OEM service, accept customer label, develop the product with your drawings or samples .If you have any question, contact us, we will be reply with prompt speed.

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
